OneMatrix Solution -LONGi

Product Overview

Detailed Parameters

DC Side - LONGiBank 3.0

OneMatrix Solution-3440

OneMatrix Solution-6880

Cell type

LFP

Battery configuration

416S8P

Nominal capacity

6251 kWh

Nominal voltage

1331.2 V

DC voltage range

1164.8 ~ 1500 V

Charge-discharge rate

≤ 0.5P

Dimensions (W×D×H)

6058 mm × 2438 mm × 2896 mm

Weight

≤ 47 t

DC Side - LONGiBank 3.0:

Cell type

OneMatrix Solution-3440:

LFP

OneMatrix Solution-6880:

LFP

DC Side - LONGiBank 3.0:

Battery configuration

OneMatrix Solution-3440:

416S8P

OneMatrix Solution-6880:

416S8P

DC Side - LONGiBank 3.0:

Nominal capacity

OneMatrix Solution-3440:

6251 kWh

OneMatrix Solution-6880:

6251 kWh

DC Side - LONGiBank 3.0:

Nominal voltage

OneMatrix Solution-3440:

1331.2 V

OneMatrix Solution-6880:

1331.2 V

DC Side - LONGiBank 3.0:

DC voltage range

OneMatrix Solution-3440:

1164.8 ~ 1500 V

OneMatrix Solution-6880:

1164.8 ~ 1500 V

DC Side - LONGiBank 3.0:

Charge-discharge rate

OneMatrix Solution-3440:

≤ 0.5P

OneMatrix Solution-6880:

≤ 0.5P

DC Side - LONGiBank 3.0:

Dimensions (W×D×H)

OneMatrix Solution-3440:

6058 mm × 2438 mm × 2896 mm

OneMatrix Solution-6880:

6058 mm × 2438 mm × 2896 mm

DC Side - LONGiBank 3.0:

Weight

OneMatrix Solution-3440:

≤ 47 t

OneMatrix Solution-6880:

≤ 47 t

AC Side

OneMatrix Solution-3440

OneMatrix Solution-6880

Rated output power

215 kW × 16

215 kW × 32

Rated voltage

690 V (800 V)

Rated grid frequency

50 / 60 Hz

THDi

≤ 2%

Power factor range

> 0.99

PCS peak efficiency

99.02%

Temperature control

Liquid cooling

AC Side:

Rated output power

OneMatrix Solution-3440:

215 kW × 16

OneMatrix Solution-6880:

215 kW × 32

AC Side:

Rated voltage

OneMatrix Solution-3440:

690 V (800 V)

OneMatrix Solution-6880:

690 V (800 V)

AC Side:

Rated grid frequency

OneMatrix Solution-3440:

50 / 60 Hz

OneMatrix Solution-6880:

50 / 60 Hz

AC Side:

THDi

OneMatrix Solution-3440:

≤ 2%

OneMatrix Solution-6880:

≤ 2%

AC Side:

Power factor range

OneMatrix Solution-3440:

> 0.99

OneMatrix Solution-6880:

> 0.99

AC Side:

PCS peak efficiency

OneMatrix Solution-3440:

99.02%

OneMatrix Solution-6880:

99.02%

AC Side:

Temperature control

OneMatrix Solution-3440:

Liquid cooling

OneMatrix Solution-6880:

Liquid cooling

MVS Parameter

OneMatrix Solution-3440

OneMatrix Solution-6880

Rated power

3440 kVA

6880 kVA

Transformer voltage ratio

(6~37) kV / 0.69 kV

Transformer type

Oil-immersed / Dry-type

Dimensions (W×D×H)

6058 mm × 2438 mm × 2896 mm

12192 mm × 243 mm × 2896 mm

Weight

≤ 18

≤ 28

Degree of protection

IP54 (PCS IP66)

Operation temperature range

-30 ~ 60°C

Operation humidity range

0 ~ 95% RH

Max.operating altitude

>3000 m derating

Communication interfaces

Ethernet, RS485, CAN

Communication protocols

ModbusTCP/RTU, IEC 104, IEC 61850

MVS Parameter:

Rated power

OneMatrix Solution-3440:

3440 kVA

OneMatrix Solution-6880:

6880 kVA

MVS Parameter:

Transformer voltage ratio

OneMatrix Solution-3440:

(6~37) kV / 0.69 kV

OneMatrix Solution-6880:

(6~37) kV / 0.69 kV

MVS Parameter:

Transformer type

OneMatrix Solution-3440:

Oil-immersed / Dry-type

OneMatrix Solution-6880:

Oil-immersed / Dry-type

MVS Parameter:

Dimensions (W×D×H)

OneMatrix Solution-3440:

6058 mm × 2438 mm × 2896 mm

OneMatrix Solution-6880:

12192 mm × 243 mm × 2896 mm

MVS Parameter:

Weight

OneMatrix Solution-3440:

≤ 18

OneMatrix Solution-6880:

≤ 28

MVS Parameter:

Degree of protection

OneMatrix Solution-3440:

IP54 (PCS IP66)

OneMatrix Solution-6880:

IP54 (PCS IP66)

MVS Parameter:

Operation temperature range

OneMatrix Solution-3440:

-30 ~ 60°C

OneMatrix Solution-6880:

-30 ~ 60°C

MVS Parameter:

Operation humidity range

OneMatrix Solution-3440:

0 ~ 95% RH

OneMatrix Solution-6880:

0 ~ 95% RH

MVS Parameter:

Max.operating altitude

OneMatrix Solution-3440:

>3000 m derating

OneMatrix Solution-6880:

>3000 m derating

MVS Parameter:

Communication interfaces

OneMatrix Solution-3440:

Ethernet, RS485, CAN

OneMatrix Solution-6880:

Ethernet, RS485, CAN

MVS Parameter:

Communication protocols

OneMatrix Solution-3440:

ModbusTCP/RTU, IEC 104, IEC 61850

OneMatrix Solution-6880:

ModbusTCP/RTU, IEC 104, IEC 61850

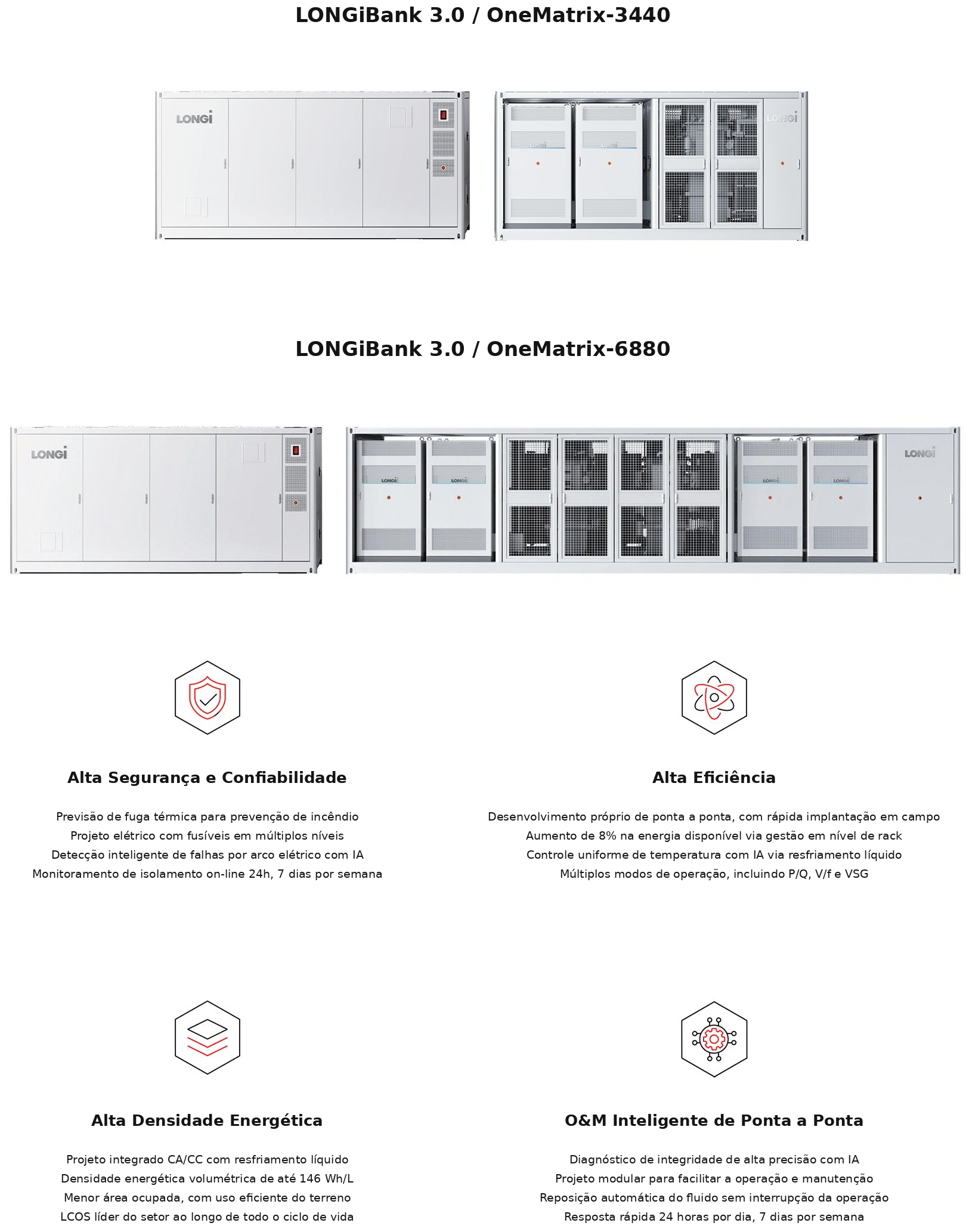

Core Advantages of OneMatrix Solution
